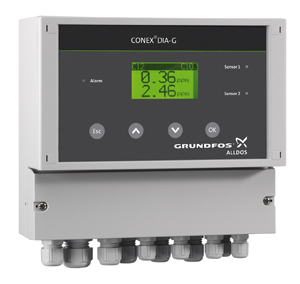

Conex DIA-G
Optimum safety – minimum labour input: The Conex DIA-G safety system monitors the concentration of the gases chlorine, chlorine dioxide, ozone, ammonia and hydrochloric acid in the air of storage rooms. It is equipped with a range of functions providing the users with optimum safety combined with minimum labour input. One unit can use two interconnected sensors to monitor two different gases, two different gas concentrations or two different gas storage rooms in parallel.
Applications:
- Drinking water
- Swimming pool water
- Industrial water
- Waste water
Amplifier Conex DIA-G
| Electronics | 16 bit microprocessor | |
| Relay outputs | 5 potential-free relay outputs per software switchable to N.O. or N.C. (fail-safe), max. 250 V/6 A, max. 550 VA – 2 relays for the limit values of every of the two sensors – 1 alarm relay |
|
| Power supply | 110 – 240 V (50/60 Hz) or 24 V DC Separate |Sensor Interface |
for one potentiostatic sensor, directly plugged into the Interface. |
Gas sensors
| Gases | Measuring range | Accuracy | Response time(20 °C) | max. distance |
| Amperometric sensors | ||||
| Cl2 ClO2 O3 |
0 – 5 ppm | +/-10 % | 2 s | 100 m |
| Potentiostatic sensors | ||||
| Cl2 | 0.00 – 20.00 ppm | < 0.05 ppm | < 30 s | 500 m |
| ClO2 | 0.00 – 1.00 ppm | < 0.03 ppm | < 120 s | |
| O3 | 0.00 – 1.00 ppm | < 0.02 ppm | < 60 s | |
| NH3 | 0 – 100 ppm | < 1 ppm | < 120 s | |
| HCl | 0.00 – 30.0 ppm | < 0.07 ppm | < 70 s |
Features & Benefits:
- Optimum safety: Thanks to permanent sensor monitoring, the alarm relay and the possibility of backup operation (uninterrupted current supply) by connection of an external buffer battery
- Very short response time in case of a sudden change of the gas concentration
- Long service life of the sensor element – without necessity of maintenance
- Sensor recognition and auto-calibration, monitoring of the lifetime of the sensor
- Internal CAN bus interface for the connection of potentiostatic sensors using Bus lines with a total length of max. 500 m
- External CAN bus interface for the connection of Conex DIA-G to the visualising software AquaVision 2 or to PLC
